Graph Data Structure: Key Concepts, Types, and Applications

Introduction

Graphs are more than abstract data structures—they are a reflection of real-world systems. From mapping the shortest path in Google Maps to analyzing connections on Facebook, the graph data structure forms the backbone of many technologies we use daily. In this article, you'll explore everything from fundamental concepts to hands-on examples and advanced algorithms.

In this blog, we'll dive deep into the graph data structure—understanding key concepts, types of graphs, and their real-world applications. You'll also see coding examples to demonstrate how this structure works and learn how it can solve a variety of problems in computer science.

Table of Contents

1. What is a Graph?
2. Types of Graphs
   • Directed Graphs
   • Undirected Graphs
   • Weighted and Unweighted Graphs
   • Cyclic and Acyclic Graphs
   • Complete Graphs
3. Graph Representation
   • Adjacency Matrix
   • Adjacency List
4. Graph Traversal Algorithms
   • Depth-First Search (DFS)
   • Breadth-First Search (BFS)
5. Graph Applications
   • Social Networks
   • Shortest Path Problems
   • Network Routing Algorithms
   • Web Crawlers
   • Recommendation Systems
6. Graph Algorithms
   • Dijkstra's Algorithm
   • Prim's Algorithm
   • Kruskal's Algorithm
7. Challenges with Graphs
   • Graph Cycles
   • Graph Connectivity
   • Memory Usage
8. Conclusion

1. What is a Graph Data Structure?

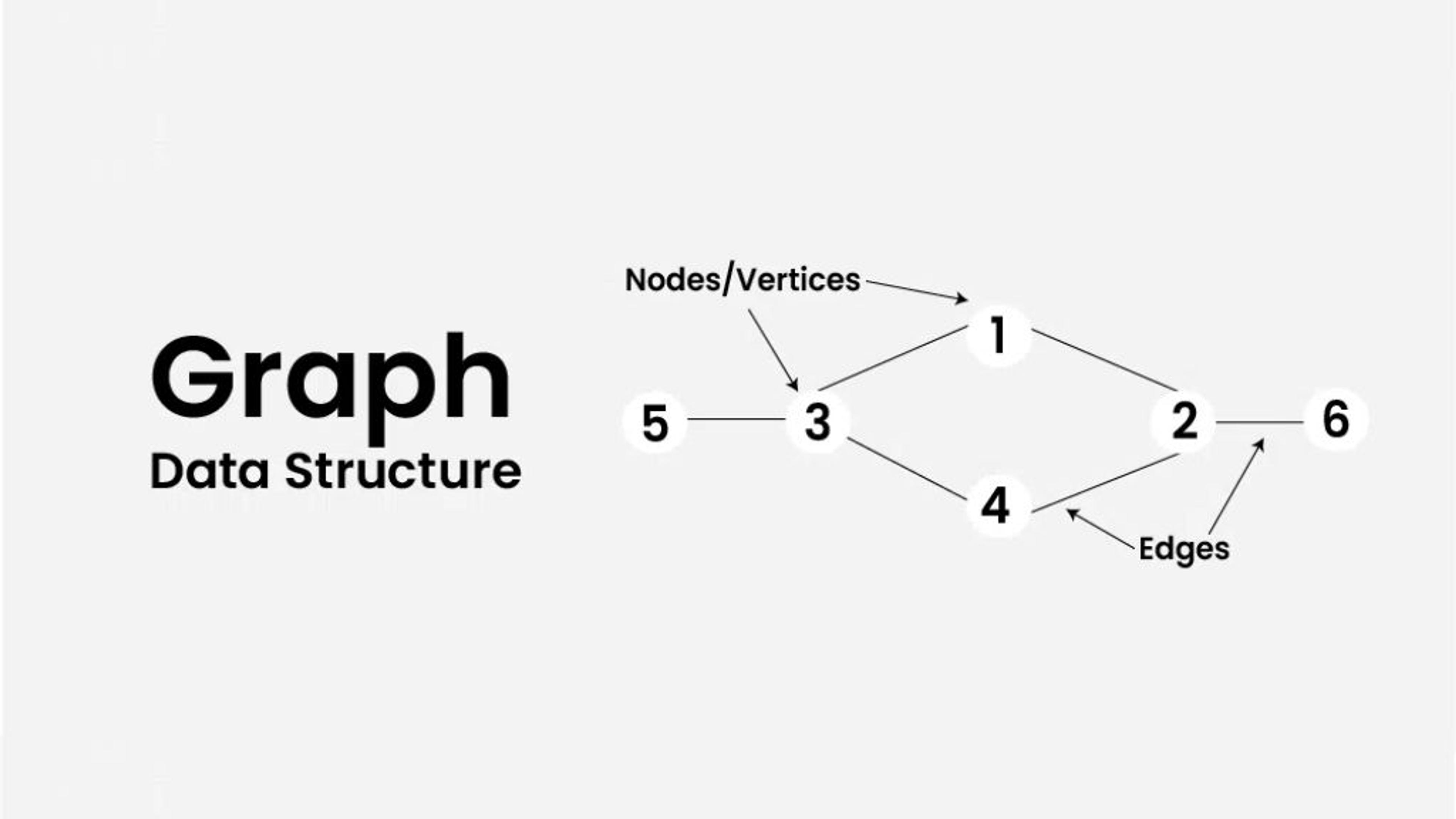

A graph data structure is a collection of nodes (or vertices) and edges that connect pairs of nodes. It is used to represent relationships between different entities. Whether it’s mapping transportation routes or modeling social networks, the graph data structure offers a powerful way to solve complex problems.

The graph data structure is foundational in computer science and can be categorized by direction (directed vs. undirected), weights (weighted vs. unweighted), and cyclic nature (cyclic vs. acyclic). These graphs are typically implemented using adjacency matrices or adjacency lists, each suitable for different scenarios.

2. Types of Graphs

Directed Graphs (Digraphs)

A directed graph in a graph data structure has edges with direction, This means that the edges point from one vertex to another. For example, a one-way street in a city can be represented as a directed graph, where each street (edge) has a specific direction.

Example:

• In a directed graph, if there’s an edge from vertex A to vertex B, it does not imply an edge from B to A.

graph = {
    'A': ['B', 'C'],
    'B': ['C'],
    'C': []
}

Undirected Graphs

In contrast, an undirected graph has edges that do not have a direction. In this case, the relationship between two vertices is mutual, meaning the edge can be traversed in either direction. An example of an undirected graph is a simple road network where every road is bidirectional.

Example:

graph = {
    'A': ['B', 'C'],
    'B': ['A', 'C'],
    'C': ['A', 'B']
}

Weighted and Unweighted Graphs

In a weighted graph, each edge carries a weight, which can represent costs, distances, or any other quantitative measure. For example, in a road network, the edges could be weighted by the distance between two cities.

Example:

graph = {
    'A': [('B', 5), ('C', 2)],
    'B': [('C', 1)],
    'C': [('B', 3)]
}

An unweighted graph has edges that do not carry weights, meaning the relationship between vertices is either present or not, without any additional measurement.

Cyclic and Acyclic Graphs

• Cyclic Graphs contain cycles, meaning you can start at a vertex and return to the same vertex by traversing a series of edges.
• Acyclic Graphs do not contain cycles. These types of graphs are often used to represent hierarchical structures or dependencies (e.g., a project task dependency).

Example of a Directed Acyclic Graph (DAG):

graph = {
    'Task 1': ['Task 2', 'Task 3'],
    'Task 2': ['Task 4'],
    'Task 3': ['Task 4'],
    'Task 4': []
}

Complete Graphs

A complete graph is one where every vertex is connected to every other vertex. This type of graph data structure is useful for modeling fully connected systems.

3. Graph Representation

Graphs can be represented primarily through two methods: the Adjacency Matrix and the Adjacency List.

Adjacency Matrix

An adjacency matrix is a 2D array used to represent a graph data structure. where each cell (i, j) represents the presence (or weight) of an edge between vertices i and j. This representation is easy to implement but not very efficient for sparse graphs (graphs with relatively few edges).

# Adjacency Matrix for an undirected graph
graph = [
    [0, 1, 1],
    [1, 0, 1],
    [1, 1, 0]
]

Adjacency List

An adjacency list is an array of lists. Each list contains the neighboring vertices of a given vertex. This representation is more memory-efficient, especially for sparse graphs.

graph = {
    'A': ['B', 'C'],
    'B': ['A', 'C'],
    'C': ['A', 'B']
}

4. Graph Traversal Algorithms in Graph Data Structures

Traversing a graph data structure means visiting all the vertices of a graph. The two most widely used traversal algorithms are Depth-First Search (DFS) and Breadth-First Search (BFS).

Depth-First Search (DFS)

DFS explores a graph data structure by starting from a vertex and traversing as deeply as possible along each branch before backtracking.

Example Code:

def dfs(graph, start, visited=None):
    if visited is None:
        visited = set()
    visited.add(start)
    for neighbor in graph[start]:
        if neighbor not in visited:
            dfs(graph, neighbor, visited)
    return visited

# Example usage
graph = {'A': ['B', 'C'], 'B': ['A'], 'C': ['A']}
dfs(graph, 'A')  # Output: {'A', 'B', 'C'}

Breadth-First Search (BFS)

BFS traverses a graph data structure level-by-level, explores a graph by visiting all vertices at the present depth level before moving on to the vertices at the next level.

Example Code:

from collections import deque

def bfs(graph, start):
    visited = set()
    queue = deque([start])
    while queue:
        vertex = queue.popleft()
        if vertex not in visited:
            visited.add(vertex)
            queue.extend(graph[vertex] - visited)
    return visited

# Example usage
graph = {'A': {'B', 'C'}, 'B': {'A', 'C'}, 'C': {'A', 'B'}}
bfs(graph, 'A')  # Output: {'A', 'B', 'C'}

5. Graph Applications

Graphs have a wide range of real-world applications, and their versatility makes them one of the most useful data structures in computer science.

Social Networks

In social networks, users are represented as vertices, and relationships (friends, followers, etc.) are represented as edges. Algorithms like DFS and BFS can be used to find mutual connections, suggest friends, or detect communities within a network.

Real-World Example: In Facebook, your friends form a graph where each node represents a person, and the edges represent the friendship between them. DFS can be used to find mutual friends, while BFS can be used to explore connections within a certain degree of separation.

Shortest Path Problems

Graphs are used to solve shortest path problems. For example, the Dijkstra's algorithm is widely used to find the shortest path between two vertices in a weighted graph, such as finding the shortest route between two cities on a map.

Real-World Example: In Google Maps, the shortest path between two locations can be found using Dijkstra's algorithm, where roads are edges and intersections are vertices.

Network Routing Algorithms

Graph algorithms like Bellman-Ford and Dijkstra's algorithm are used to find the best route for data packets in networking. These algorithms help ensure that data can travel through the least congested or fastest path.

Real-World Example: In internet routing protocols like OSPF or BGP, routers use graph algorithms to find the most efficient paths for routing data packets across networks.

Web Crawlers

Web crawlers use graphs to explore and index websites. Each webpage is a vertex, and the links between them are edges. A web crawler uses BFS or DFS to traverse the web and gather information.

Real-World Example: Google’s web crawlers use BFS to index the web by traversing all the links on a webpage and storing data in search indexes.

Recommendation Systems

Graphs are also used in recommendation systems. For instance, e-commerce sites like Amazon use graph-based algorithms to recommend products to users based on their browsing history or purchase patterns.

6. Graph Algorithms for Graph Data Structures

Among the most frequently used graph algorithms are:

Dijkstra’s Algorithm

Dijkstra's algorithm is used to find the shortest path in a weighted graph. It's particularly useful for routing in networked systems.

Prim’s Algorithm and Kruskal’s Algorithm

Both Prim's and Kruskal's algorithms are used for finding minimum spanning trees in a weighted graph. These are important in applications like network design.

7. Challenges in Graph Data Structures

While powerful, the graph data structure comes with its challenges:

• Cycles in graphs can complicate traversal and make algorithms like DFS more difficult to implement.
• Graph Connectivity is another challenge, where we need to determine whether all vertices are reachable from any other vertex.
• Memory Usage can become a problem, especially with large graph data structures, as they require a significant amount of storage space.

8. Conclusion

The graph data structure is a cornerstone of modern computing. Whether you're optimizing a transportation route, analyzing social connections, or building a recommendation engine, mastering graph data structures and their algorithms is essential for developers and data scientists.

With algorithms like DFS, BFS, and Dijkstra, graph theory helps developers solve a wide range of complex problems, and mastering these concepts is vital for anyone working in computer science or software development.

TL;DR: Quick Comparison of Graph Types

Here’s a quick summary of the most common graph types and their key characteristics:

Frequently Asked Questions (FAQs)

Q1: What is a graph in data structures?

A graph data structure is a collection of nodes (vertices) and edges (connections) that represent relationships between entities. Graphs are used to model networks, such as social networks, computer networks, or transportation systems, and can be either directed or undirected, weighted or unweighted.

Q2: What are the different types of graphs in computer science?

There are several types of graphs:

• Directed Graphs (Digraphs): Where edges have a direction.
• Undirected Graphs: Where edges do not have a direction.
• Weighted Graphs: In these graphs, edges are assigned weights or costs.
• Unweighted Graphs: Edges do not carry any weight.
• Cyclic Graphs: Contain cycles, where a path starts and ends at the same vertex.
• Acyclic Graphs: Do not contain any cycles.
• Complete Graphs: Every pair of vertices is connected.

Q3: What are adjacency lists and matrices in graph representation?

• Adjacency Matrix: A 2D array where each cell indicates if there is an edge between two vertices. It is simple but less efficient for sparse graphs.
• Adjacency List: A list where each vertex has a list of its neighboring vertices. This is more memory-efficient for sparse graphs and is widely used in graph algorithms.

Q4: How do you traverse a graph?

Graph traversal involves visiting all the vertices and edges in a graph. Two common algorithms are:

• Depth-First Search (DFS): Explores as far down a branch as possible before backtracking.
• Breadth-First Search (BFS): Explores all neighboring vertices at the current level before moving to the next level.

Q5: What is Dijkstra’s algorithm used for?

Dijkstra's algorithm helps determine the shortest path between nodes in a weighted graph. It's widely applied in network routing and GPS navigation systems to identify the most optimal route.

Q6: What is a Directed Acyclic Graph (DAG)?

A Directed Acyclic Graph (DAG) is a graph that is directed and does not contain any cycles. DAGs are useful in representing tasks with dependencies, such as project scheduling or data flow in databases.

Q7: What are the applications of graph data structures?

Graphs are used in numerous real-world applications, including:

• Social Networks: Representing relationships between users.
• Navigation Systems: Finding the shortest path between two locations.
• Recommendation Systems: These systems suggest products or services based on user preferences and behavior.
• Web Crawling: Traversing the web by following links between pages.
• Network Routing: Finding the most efficient path for data packets in computer networks.

Q8: What are the challenges of working with graphs?

Working with graphs comes with challenges such as:

• Graph Cycles: Dealing with cycles in directed graphs can complicate traversal and algorithm implementation.
• Memory Usage: Storing large graphs can require significant memory, especially with dense graphs.
• Graph Connectivity: Ensuring all vertices are reachable from each other can be a complex task in large networks.

Q9: What is the difference between BFS and DFS?

• Breadth-First Search (BFS) explores the graph level by level and is ideal for finding the shortest path in an unweighted graph.
• Depth-First Search (DFS) goes as deep as possible into a branch before backtracking, which is useful for tasks like topological sorting or finding strongly connected components in a graph.

Q10: What is the importance of graph algorithms?

Graph algorithms are crucial for efficiently solving problems involving networks, dependencies, and relationships. They help optimize routes, find the best recommendations, detect cycles, and much more, making them essential in fields like networking, AI, and data science.
